Kayak

• PATENTED Technology with 3 Individualy Adjustable Time settings meant to SET IT AND FORGET IT
• ON Time is Adjustable from 20 seconds to 3 minutes: Pot adjusted all the way to left is 20 Seconds ON, pot adjusted all the way to right is 3 minutes ON.
• OFF Time is Adjustable from 40 seconds to 6 minutes:  Pot adjusted all the way to the left is 40 Seconds OFF, pot adjusted all the way to the right is 6 minutes OFF
• Automatic Shut off is Adjustable from 2 hours to 12 hours, or can be disabled
• Timer uses 5 Amp solid state switch, it has NO mechanical Relay,  it can run all 500gph, all 750/800gph pumps and most 1100gph pumps, see the current rating on your pump
• Timer can be used on ANY Boat or other vehicle that has a 12 volt battery Lead Acid Battery.  Intended use is on light weight, small capacity battery
• THIS MODEL is intended for a small boat of kayak with an engine that does NOT have an alternator or has NO engine at all:
• Microprocessor uses different battery Charge and Discharge Calculations than that used on model base model (ETI-2K3-04-04 starting battery)
• Battery Measuring circuit checks for low battery and shuts device off, If using small capacity battery, this timer will not run all night, the battery will go low first

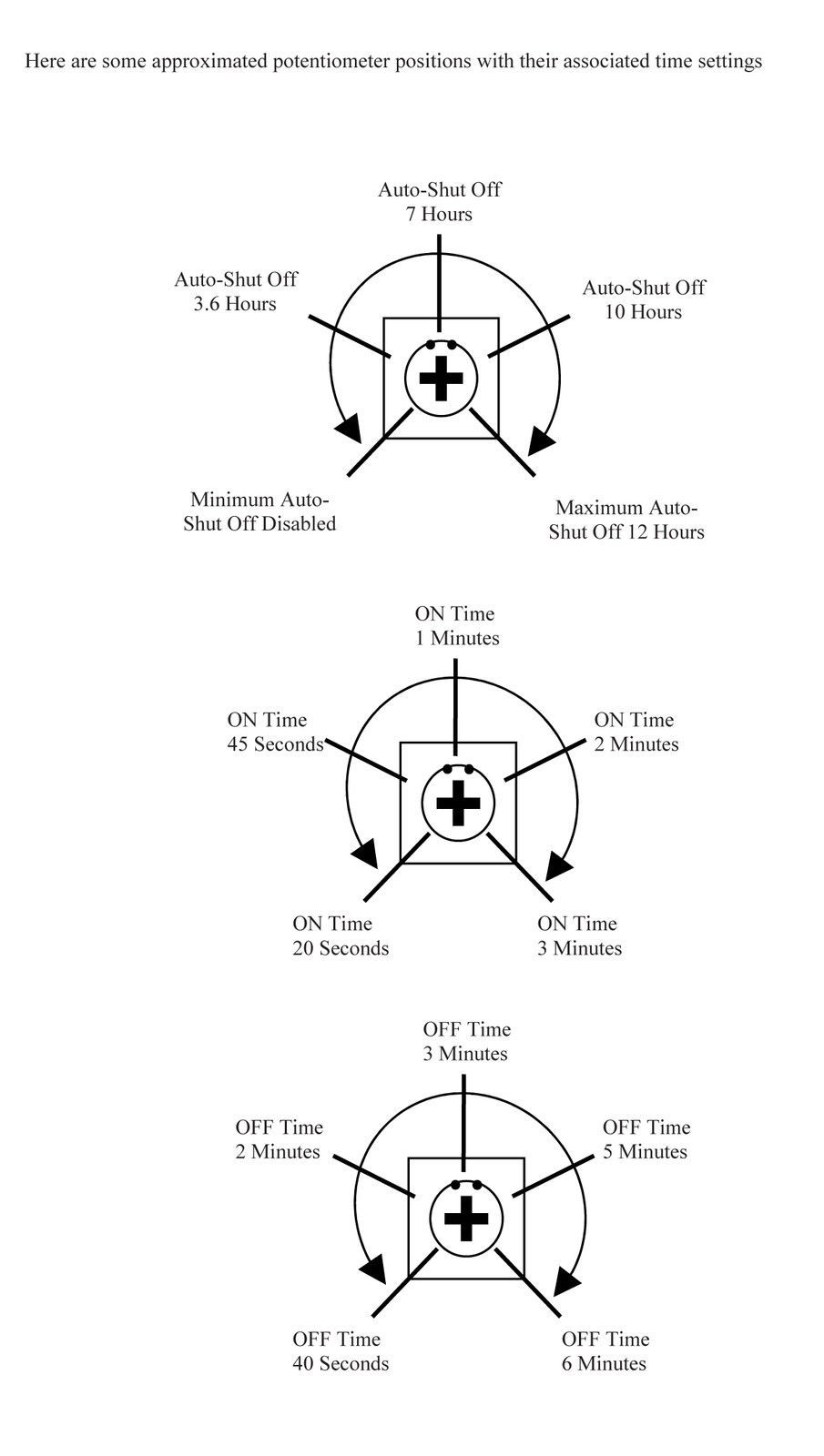

Item is meant to be adjusted once when installed then SET IT AND FORGET IT. Item comes shipped with a plastic screwdriver to make adjustments OPERATION INSTRUCTIONS:Time adjustment potentiometers rotate a little bit less than one complete turn. roll a small screwdriver (included in order) between your thumb and forefinger to adjust. It requires minimal force to rotate the pots. Damage to the pots will NOT be covered by the timer warranty. Rotate the Pots to the right to increase time and left to decrease the time. When you apply power to the timer by using the external manual switch (not included), the unit will do a tank fill cycle for 1.5  minutes, then Alternate between OFF Cycle and ON Cycle for the adjusted time(potentiometer setting). AUTOmatic Shutoff occurs when a low battery is sensed at the power terminal or from a specified time period when the battery is not charging. If you run your adjustable livewell timer for a period of 10 hours without restarting the engine, your timer will go into battery saving mode and set the time cycles to 3 1/2 minutes ON and 12 minutes off. If you restart your engine for a period greater than one minute, the time settings will go back to the originally adjusted time (from potentiometer settings).  The timer has an internal "voltmeter" that takes Automatic LOW Battery measurements in the background while the unit is run. If the unit turns off because of LOW Battery, It will do five cycles of ON for 5 seconds, then OFF for 5 seconds, and it will lock out in the OFF position. To reset the device, remove power by turning off the external (not included) power switch, and turn it back on.  If a low battery condition exists, Its time to charge your battery, Check for loose connections, or buy a new battery if it is more than 5 years old. The Auto shut off time starts over if you start your boat engine (battery starts recharging) or connect a charger to your battery. If you wish to keep your bait or fish in the livewell overnight, the auto shut off can be set to 12 hours. In this case, the timer measures your battery, and will continue to run overnight, and will turn itself off before the battery goes low. Product has 2 year warranty.  Any Warranty Issues will be resolved by replacement of product.   Damage due to improper intallation or improper use are not covered by warranty
